Industrial Gas Burner BNG210

♦Gas-fired burner.♦One/Two-stage working.♦490-2000kw

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Question 1-Product Description

SHORT DESCRIPTION

♦Gas-fired burner.

♦One/Two-stage working.

♦Air-gas mixing at blast-pipe.

♦Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

♦Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

♦Single stage manual flow adjustment.

♦Two stage Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.

♦One flange and one insulating seal for boiler fastening.

♦ Combustion air intake with air flow adjustment device.10. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

♦Monophase electric motor to run fan.

♦Flame presence check by ionisation electrode.

♦Electrical plant protection rating IP40.

PRODUCT VIDEO

Send Inquiry

Question 2-Product Parameter

BNG210 PARAMETERS

M,odel	BNG210/BNG210P
Fuel	Natural Gas (NG)\| Propane (LP)\|Propane Air Mix (LA)\|Town Gas (TG) Digester Gas (DG)
Power(kw)	490-2000
Gas Flow(m3/h)	49.6-202.4
Power Supply	3N AC 50Hz 380V
Motor Power(kw)	3
Combustion Chamber Pressure(mbar)	13
Control	One/Two stage fire
Packing Size(mm)	1350x1000x800
Weight(kg)	180

*For more parameters, please contact: info@bntet.com

Question 3-Product Display

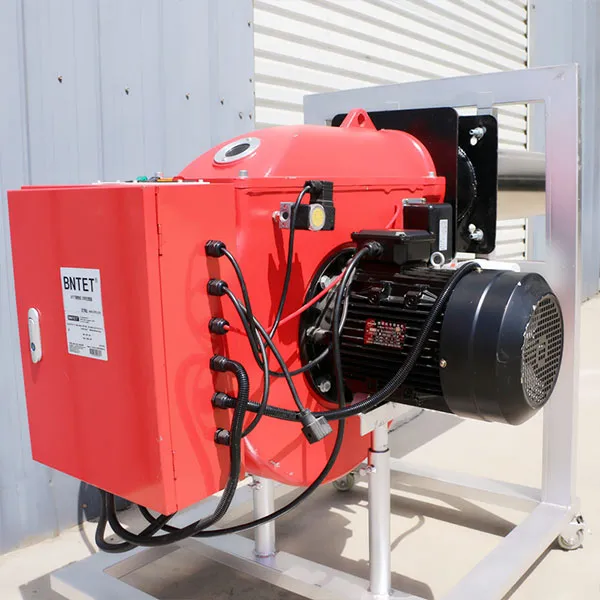

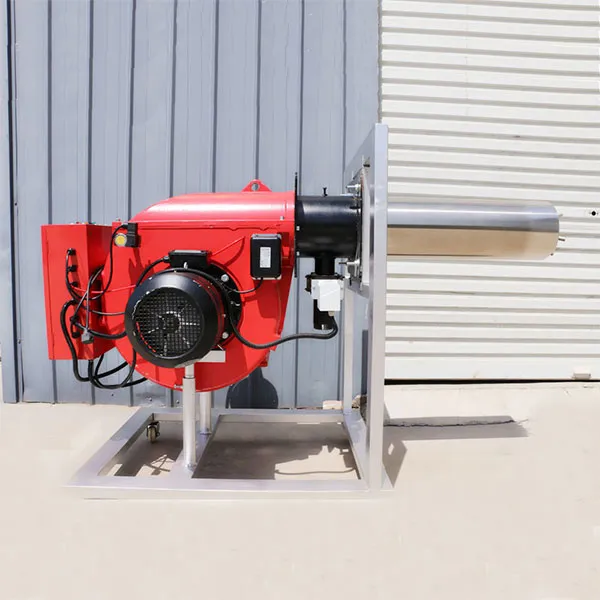

PRODUCT DETAILS

1.Combustion tube

2.Connecting flange

3.Fire view mirror

4.Electronic control cabinet

5.Motor

6.Ignition transformer

Send Inquiry

industrial-gas-burner-bng210-details

industrial-gas-burner-bng210-details02

Question 4-Application

application

gas-burner-application
gas-burner-application02

Question 5-FAQ

Q:Industrial gas burner working principle

A:The working principle is that the gas is mixed with air during transportation to the combustion chamber and ignited with a spark or pilot flame.

Q:How to calculate the gas consumption of an industrial gas burner?

A:(Power[kw] x 3.6) / calorific value of gas [MJ/m3n].

Example:

●Required burner power = 7,220 kW

●The calorific value of natural gas=35.8 MJ/m3n

→Gas consumption = (7,220 kW x 3.6)/35.8 MJ/m3n = 726 m3n/h
